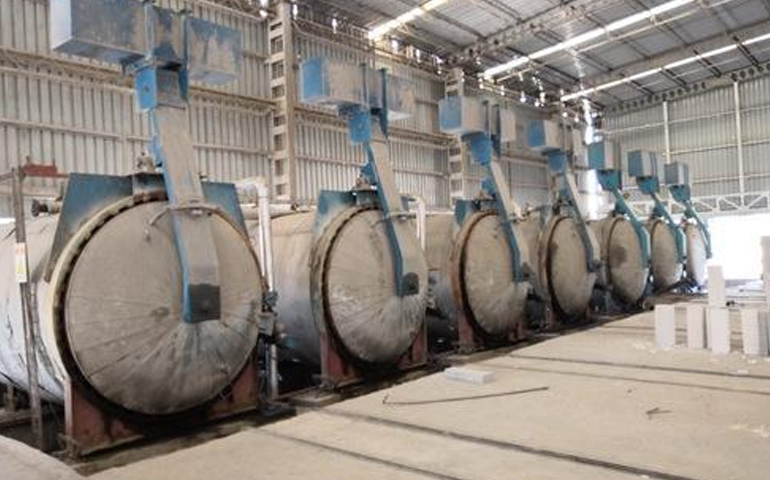

AAC Autoclave is a kind of large-scale steam tools which is the key equipment in the production of aerated concrete and autoclaved brick. It can be used to steam sand lime brick, flyash brick, slag brick, aerated concrete block, cement pile and other cement products.
Our autoclave is a horizontal cylindrical device made of steel. The quality of the autoclave is good, and its performance is reliable. AAC Autoclave is the pressure vessel and key equipment in the production of aerated concrete and autoclaved brick. It is applicable for curing the cut body or brick under high temperature and high pressure. The working medium is saturated water vapor. its also know as AAC steam curing equipment.
Purpose of the Autoclave : The autoclave (Steam Curing) is used for curing the cut body under high temperature and high pressure. The main parts are made by autoclave body, cover, hand-operated reducer, safe blocking device, support saddle, valve meter etc. The body is a principle and cylindrical device made of steel. The cover is made of a whole piece of pressed 16MnR steel board, and the flanges of cover and body adopt a whole piece of forged and processed 16Mn steel board.
The welding lines of pressed components are subjected to heat treatment and strict nondestructive test.
Specification and Technical Data of Casting Machine and Technical Data of Casting Machine :
| Model | Size Mtr. | Length Mtr. | Diameter Mtr. Inside | Working Media |
|---|---|---|---|---|
| Mixwell-AA-20 | 2 x 21 | 21 | 2 | Saturated Steam |
| Mixwell-AA -21 | 2 x 27 | 27 | 2 | Saturated Steam |
| Mixwell-AA -22 | 2 x 30 | 30 | 2 | Saturated Steam |
| Mixwell-AA | 2.65 | 38 | 2.65 | Saturated Steam |
Salient Features
- Designed as per A S M E Code
- Working Pr. - Up to 16 Kg./cm2
- Working Temp. - Up to 200 Degree C
- MOC - S A 516 - 70
- Door Opening : Manual Opening/Hydraulic Opening
- Heavy Saddles for expanses
- Precise Slot Cutting for better quality of product
We are also manufacturer of AAC Plant (Autoclaved aerated concrete Plant), AAC Block Machine, AAC Block Manufacturing Machine, AAC Block Machine Manufacturer, Mold for AAC Block, AAC Block Vertical Cutting Machine, Auto Clave, AAC Horizontal Cutting Machine, AAC Boiler, AAC Block Transfer Trolley, fly ash & paver block & bricks, sand mix miller, color mixer, vibrating table vibrating screen machine, magnetic drum separator, hydraulic cylinder, swing frame grinder, foundry ladles, hydraulic press, etc. based at Ahmedabad, Gujarat, India.
